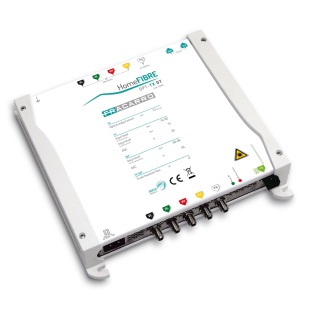

Hinweis: Quattro-LNB auf optischer Umsetzer (SC/APC Anschlüsse), Ausgang tauglich für Jultec JOL0102-90A (Gen2) für eine Breitband-Zuführung auf Jultec JPS/JRS Multischalter. The Fracarro Home Fibre range is a highly innovative solution, designed for its simplicity of installation from the head end to the wall outlet. The system uses a conventional LNB and dish assembly requiring no special optical alignment tools. It is capable of carrying all satellite and terrestrial signals through a single 9/125 glass fibre. Additional transmitters can be cascaded using a standard 5 core co-axial back bone giving greater flexibility in system design to supply a large number of outlets. RELIABILITY
- Enables the transfer of signals without loss or degradation over long distances (attenuation 0.3dB/Km) - Immune to electrical and environmental interferences and is therefore ideally suited for those particularly difficult Installations FLEXIBILITY
- Enables complex systems with a high number of outlets to be designed easily (1 TX for 128 outlets) - Compatible integration with existing coax systems - Cascadeable distribution typical of multiswitch topography (tree & branch or star wired) EASE OF INSTALLATION
- Simplifies cabling due to the extremely small cables and connectors (only 3mm) - Use of traditional dish and LNB Array - No specialised optical alignment equipment required The 5mW optical transmitter works in the second optical transmission window (1310nm) and manages the SAT signals – from a traditional LNB and dish combination – including full bandwidth DTT. Equipped with automatic gain control (AGC), up to a maximum of 7 transmitters can easily be connected together using the typical cascade distribution infrastructure, serving up to 896 wall outlets per trunk. RF Inputs: 5 (4 SAT + 1TERR) RF Outputs: 7 (4 SAT + 1TERR + 2TEST) Optical output: 1 SC/APC SAT Input
- Bandwidth MHz: 950 – 2150 - Connectors type: F Female - Input Return loss dB: 10 - Trunk line insertion loss dB: <2 - Input Level dBuV: 69 – 86 TV InputBandwidth MHz: 87 – 862
- Connectors type: F Female - Input Return loss dB: 10 - Trunk line insertion loss dB: 1 - Input Level dBuV: 80@10ch Test outputs
- Bandwidth MHz: 87 – 862 / 950 – 2150 - Connectors type: F Female - Input Return loss dB: 10 - Test signal level dBuV: 59 Optical output
- Connectors type: SC/APC - Wavelength nm: 1310 - Optical power dBm: 8 (5mW) - Optical return loss dB: >45 - Safety class: 1M MAIN FEATURES
- Mains Vac/Hz: 184 – 264 / 50 – 60 - Power consumption: 15W - LNB remote feeding mA: 200@14V (4 SAT connectors) - Operating temperature °C: -5 to +55 - AGC Dynamics: 20dB
Alle Bewertungen:
nicht günstig, aber super gut Planung einer optischen Anlage für 2 Satelliten, mit sehr großen Ansprüchen (3 Häuser a über 50 Wohneinheiten). Hier wurden wir fündig in der Versorgung. Läuft in jeder Wohnung einwandfrei. Danke.
Planung einer optischen Anlage für 2 Satelliten, mit sehr großen Ansprüchen (3 Häuser a über 50 Wohneinheiten). Hier wurden wir fündig in der Versorgung. Läuft in jeder Wohnung einwandfrei. Danke.
